PRESS-IN INSERT – IFL/IFLH
NOTES

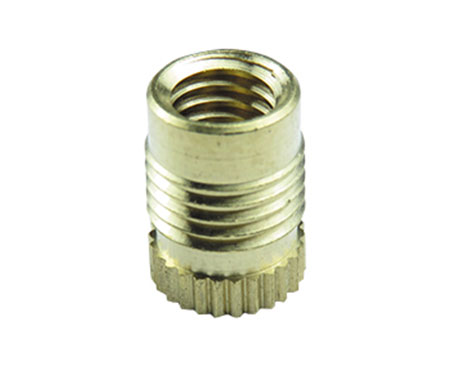

IFL/IFLH is a press-in insert which can be easily installed into most thermoplastic materials. It features a combination of sharp fins and straight knurls. Unlike the press-in locking range, this insert has a free running thread. Headed version is also available.

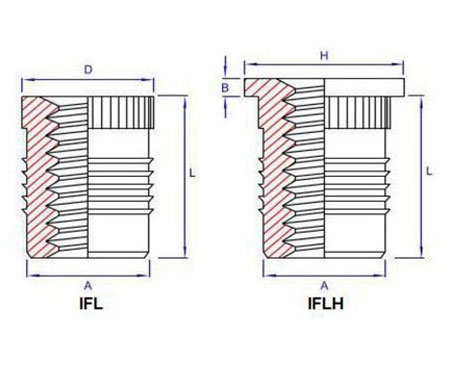

IFL/IFLH
Thread metric UNC |
D |
H |
B |
A |
L |
Nb of fins |
Hole Size
|
Min Wall
|
M2 |
3,7 |
4,8 |
0,45 |
3,1 |
4,0 |
2 |
3,2 |
1,6 |
M2,5 |
4,5 |
5,5 |
0,58 |
3,9 |
4,8 |
3 |
4,0 |
2,0 |
M3 |
4,5 |
5,5 |
0,58 |
3,9 |
4,8 |
3 |
4,0 |
2,0 |
M3,5 |
5,3 |
6,4 |
0,74 |
4,7 |
6,4 |
4 |
4,8 |
2,4 |
M4 |
6,1 |
7,1 |
0,89 |
5,5 |
7,9 |
5 |
5,6 |
2,8 |
M5 |
7,0 |
7,9 |
1,07 |
6,3 |
9,5 |
5 |
6,4 |
3,2 |
M6 |
8,6 |
9,5 |
1,32 |
7,9 |
12,7 |
7 |
8,0 |
4,0 |
M8 |
10,2 |
11,1 |
1,32 |
9,5 |
12,7 |
7 |
9,6 |
4,8 |
MATERIALS AND OTHER TYPES
– Brass, Stainless Steel to special order
– Aluminum to special order
