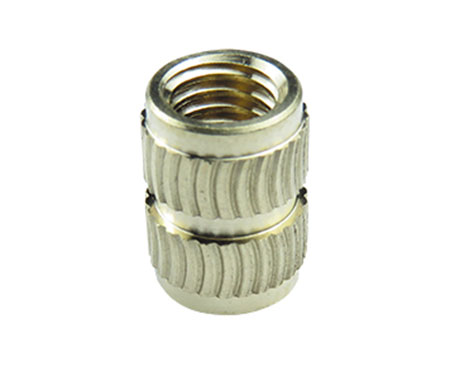

INSERT FOR AMORPHOUS PLASTICS – IHL/IHLH
NOTES
IHL is designed for installation into notch sensitive amorphous thermoplastics by heat. It features rounded knurls, avoiding the stress raising sharp crests and roots which typify knurls used on most inserts.

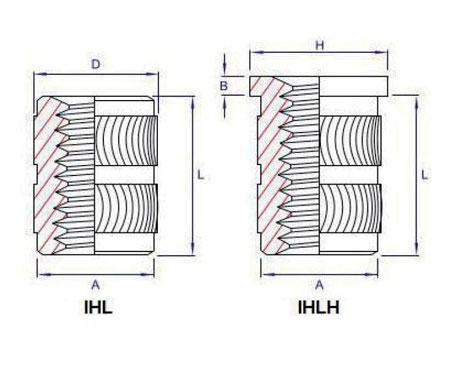

IHL/IHLH
Thread metric UNC |
D |
H |
B |
A |
L |
Hole Size
|
Min Wall
|
M2 |
3,5 |
4,8 |
0,51 |
3,1 |
3,9 |
3,2 |
1,4 |
M2,5 |
4,4 |
5,5 |
0,58 |
3,9 |
5,8 |
4,0 |
1,8 |
M3 |
4,4 |
5,5 |
0,58 |
3,9 |
5,8 |
4,0 |
1,8 |
M3,5 |
5,2 |
6,4 |
0,74 |
4,7 |
7,1 |
4,8 |
2,1 |
M4 |
6,1 |
7,1 |
0,89 |
5,5 |
8,1 |
5,6 |
2,4 |
M5 |
6,9 |
7,9 |
1,07 |
6,3 |
9,5 |
6,4 |
2,8 |
M6 |
8,5 |
9,5 |
1,32 |
7,9 |
12,7 |
8,0 |
3,6 |
M8 |
10,0 |
11,1 |
1,32 |
9,5 |
12,7 |
9,6 |
5,0 |
MATERIALS AND OTHER TYPES
– Brass, Stainless Steel to special order
– Aluminum to special order
