SYMMETRIC INSERT – ITEC
NOTES

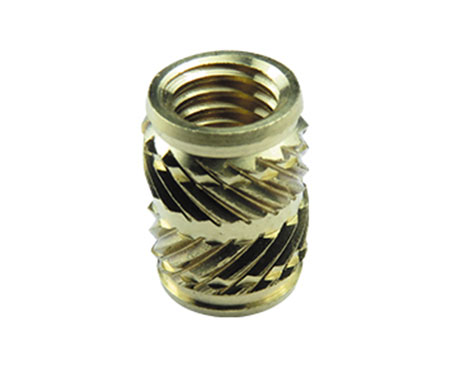

The ITEC features a unique combination of opposed knurls and knurled vanes substantially increasing performance levels, even over the Ultrasonic insert. Installation is simplified by the symmetric nature of the insert, eliminating the need for orientation during automated or hand feeding.

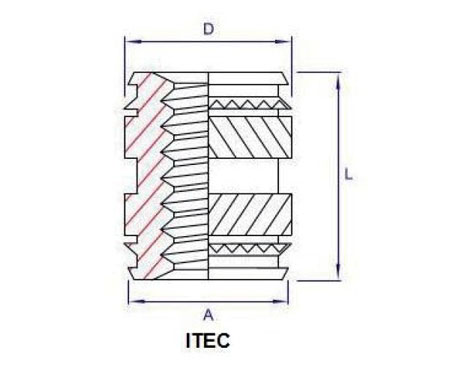

ITEC
Thread metric UNC |
D |
A |
L |
Alternative Length |
Hole Size
|
Minimum Wall
|
M2 |
3,5 |
3,1 |
4,0 |
3 |
3,2 |
1 |
M2.5 |
4,4 |
3,9 |
5,7 |
4 |
4,0 |
1 |
M3 |
4,4 |
3,9 |
5,7 |
4,0 / 4,8 |
4,0 |
1 |
M3.5 |
5,2 |
4,7 |
7,1 |
5,0 |
4,8 |
1 |
M4 |
6,1 |
5,5 |
8,1 |
4,0 / 4,8 / 5,8 |
5,6 |
2 |
M5 |
6,8 |
6,3 |
9,5 |
5,8 |
6,4 |
2 |
M6 |
8,5 |
7,9 |
12,7 |
6,8 / 9,5 |
8,0 |
3 |
M8 |
10,0 |
9,5 |
12,7 |
– |
9,6 |
4 |
M10 |
12,3 |
11,8 |
12,7 |
– |
11,9 |
6 |
M12 |
16,3 |
15,8 |
15,9 |
– |
16,0 |
8 |
MATERIALS AND OTHER TYPES
– Brass
– Stainless Steel to special order
– Aluminum to special order
