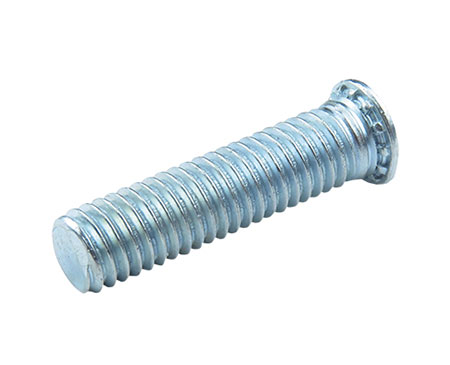

SELF-CLINCHING REDUCED HEAD STUD- IPFHL
NOTES
IPFHL has been specially designed for the installation close to the sheet metal edge.
IPFHL

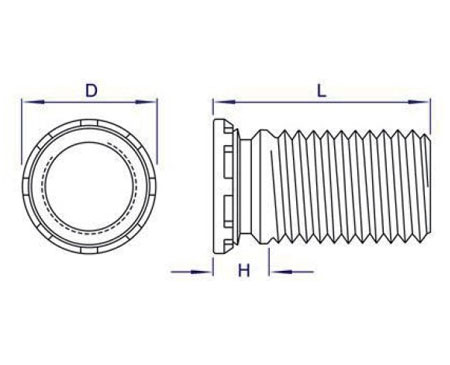

Thread and pitch | D +/- 0.4 | H Max | Min Sheet | Hole Size | Min Distance to edge of Sheet |
M2.5 x 0.45 | 3,15 | 2,1 | 1,0 | 2,5 | 2,8 |
M3 x 0.5 | 3,65 | 2,1 | 1,0 | 3,0 | 3,3 |
M3.5 x 0.6 | 4,15 | 2,2 | 1,0 | 3,5 | 3,8 |
M4 x 0.7 | 4,65 | 2,4 | 1,0 | 4,0 | 4,3 |
M5 x 0.8 | 5,90 | 2,7 | 1,0 | 5,0 | 5,6 |
STANDARDS LENGTHS
Thread and pitch | Length +/- 0.4 |
M2.5 | 6 – 8 – 10 – 12 – 15 – 18 |
M3 | 6 – 8 – 10 – 12 – 15 – 18 – 20 – 25 |
M3.5 | 6 – 8 – 10 – 12 – 15 – 18 – 20 – 25 – 30 |
M4 | 6 – 8 – 10 – 12 – 15 – 18 – 20 – 25 – 30 – 35 |
M5 | 8 – 10 – 12 – 15 – 18 – 20 – 25 – 30 – 35 |
MATERIALS AND PLATING
– Carbon Steel
– 300 series Stainless Steel
– Zinc
– Plain
