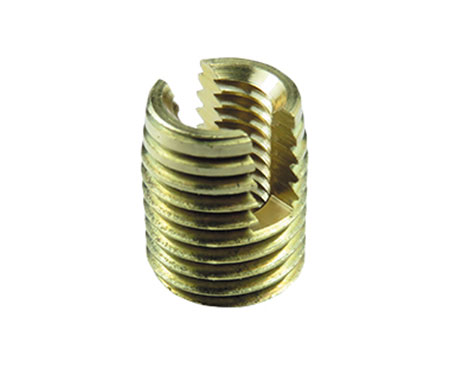

SELF TAPPING INSERT – ISCT/IHSCT
NOTES
ISCT is a self-tapping insert suitable for installation into a wide range of thermoplastic and thermosetting plastic materials. They are particularly suitable for applications involving high jack-out loading and materials with low core strengths. Headed version also available.

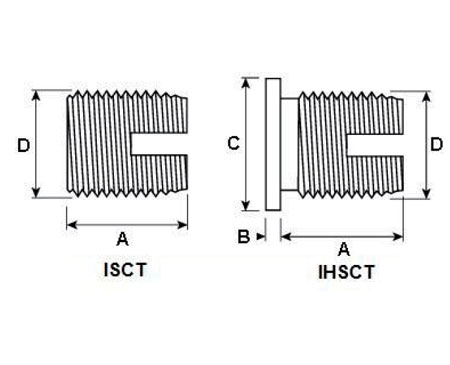

ISCT/IHSCT
Thread metric UNC |
A |
B |
C |
D Max |
Rec Hole Size
|
Rec Hole Size
|
Min Wall
|
M2,5 |
6,0 |
0,58 |
6,0 |
4,5 |
4,0 – 4,1 |
4,1 – 4,3 |
Evaluated by preproduction tests |
M3 |
6,0 |
0,58 |
6,5 |
5,0 |
4,5 – 4,6 |
4,6 – 4,8 |
Evaluated by preproduction tests |
M3,5 |
8,0 |
0,73 |
7,5 |
6,0 |
5,3 – 5,4 |
5,5 – 5,7 |
Evaluated by preproduction tests |
M4 |
8,0 |
0,89 |
8,0 |
6,5 |
5,8 – 5,9 |
6,0 – 6,2 |
Evaluated by preproduction tests |
M5 |
10,0 |
1,06 |
9,5 |
8,0 |
7,1 – 7,2 |
7,3 – 7,6 |
Evaluated by preproduction tests |
M6 |
14,0 |
1,32 |
12,0 |
10,0 |
8,6 – 8,8 |
9,0 – 9,4 |
Evaluated by preproduction tests |
M8 |
15,0 |
1,32 |
14,0 |
12,0 |
10,6 – 10,8 |
11,0 – 11,4 |
Evaluated by preproduction tests |
M10 |
18,0 |
1,57 |
16,0 |
14,0 |
12,6 – 12,8 |
13,0 – 13,4 |
Evaluated by preproduction tests |
M12 |
22,0 |
1,57 |
18,0 |
16,0 |
14,6 – 14,8 |
15,0 – 15,4 |
Evaluated by preproduction tests |
MATERIALS AND OTHER TYPES
– Brass
– Carbon Steel
