ULTRASONIC INSERT- ISL/ISHK
NOTES

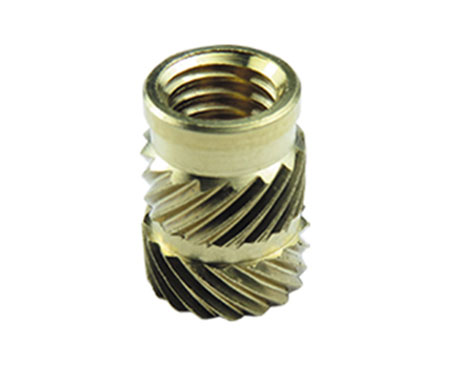

ISL is designed for rapid installation into thermoplastics using heat or ultrasonic. It features opposed helical knurl bands to provide a combination of high torque and pull out resistance.
Headed and non-headed versions are available

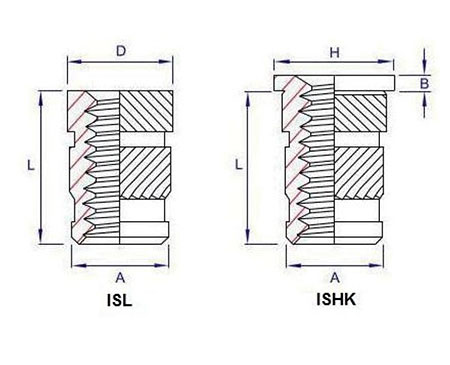

ISL/ISHK
Thread metric UNC | D | H | B | A | L | Optional | Hole Size | Min Wall |
M2 | 3,6 | 4,8 | 0,53 | 3,1 | 4,0 | 3,0 | 3,2 | 1,3 |
M2,5 | 4,6 | 5,5 | 0,61 | 3,9 | 5,7 | 4,0 | 4,0 | 1,6 |
M3 | 4,6 | 5,5 | 0,61 | 3,9 | 5,7 | 4,0 / 4,8 | 4,0 | 1,6 |
M3,5 | 5,4 | 6,4 | 0,76 | 4,7 | 7,1 | 5,0 | 4,8 | 1,8 |
M4 | 6,3 | 7,1 | 0,91 | 5,5 | 8,1 | 4,0 / 4,8 / 5,8 | 5,6 | 2,1 |
M5 | 7,1 | 7,9 | 1,09 | 6,3 | 9,5 | 5,8 | 6,4 | 2,6 |
M6 | 8,7 | 9,5 | 1,35 | 7,9 | 12,7 | 6,8 / 9,5 | 8 | 3,3 |
M8 | 10,2 | 11,1 | 1,35 | 9,5 | 12,7 | – | 9,6 | 4,5 |
M10 | 12,6 | 14,0 | 1,60 | 11,8 | 12,7 | – | 11,9 | 6,0 |
M12 | 16,7 | 19,0 | 2,00 | 15,8 | 15,9 | – | 16,0 | 8,0 |
MATERIALS AND OTHER TYPES
– Brass
– Stainless Steel to special order
– Aluminum to special order
