High torque clinch studs

IHPFH

Contact our teams on +33 (0)2 41 22 99 20

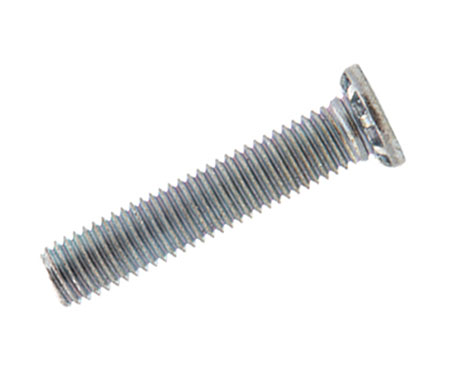

HIGH TORQUE CLINCH STUDS- IHPFH

NOTES

Maximum hardness of parent material: Steel parts – 85 HRB, Stainless Steel parts – 70 HRB. Please note that Stainless Steel parts cannot usually be successfully installed into Stainless Steel Sheet.

IHPFH

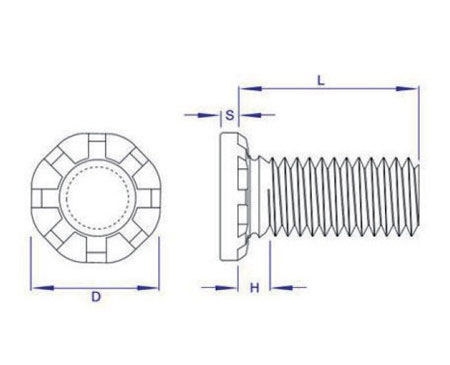

Thread and pitch

H Max

Min Sheet
Thickness

Hole Size
+0.13 -0.0

S Max

D +- 0.25

Min C/L
to edge
of panel

Torque
Out (Nm)

Push Out (N)

M5 x 0.8

2,7

1,3

5,0

1,14

7,8

10,7

7,8

1496

M6 x 1.0

2,8

1,5

6,0

1,27

9,4

11,5

16,1

2036

M8 x 1.25

3,5

2,0

8,0

1,78

12,5

12,7

37,3

2787

M10 x 1.5

4,1

2,3

10,0

2,29

15,7

13,7

47,9

4103

Torque out & Push out figures are to be used as a guide only and will vary depending on panel thickness and installation method. Figures are based on installation into 1.5mm cold rolled steel for M5 & M6, and 2.3 mm cold rolled steel for M8 & m10 under test conditions.

STANDARD LENGTHS

Thread Size

Length +/- 0.4

M5

15 – 20 – 25 – 30 – 35 – 40 – 45 – 50

M6

15 – 20 – 25 – 30 – 35 – 40 – 45 – 50

M8

15 – 20 – 25 – 30 – 35 – 40 – 45 – 50

M10

15 – 20 – 25 – 30 – 35 – 40 – 45 – 50

M5

8 – 10 – 12 – 15 – 18 – 20 – 25 – 30 – 35

MATERIALS AND OTHER TYPES

– Carbon Steel
– 300 series Stainless Steel
– Zinc
– Plain
