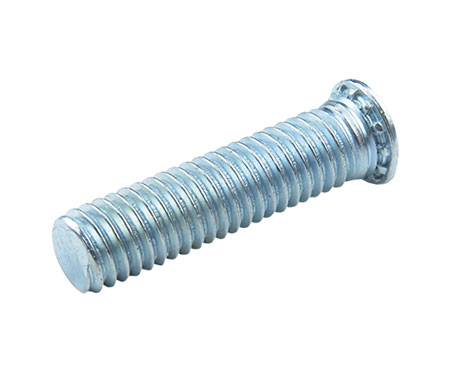

SELF-CLINCHING FLUSH HEAD STUDS – IPFH
NOTES
The following installation panel material hardness limitations apply when installing Self Clinching Studs.
Steel Clinch Studs: 80 HRB Max,
300 Series Stainless Steel Clinch Studs: 70 HRB Max,
400 Series Stainless Steel Clinch Studs: 92 HRB Max (A special anvil is recommended for a proper installation), Aluminum Clinch Studs: 50 HRB Max.

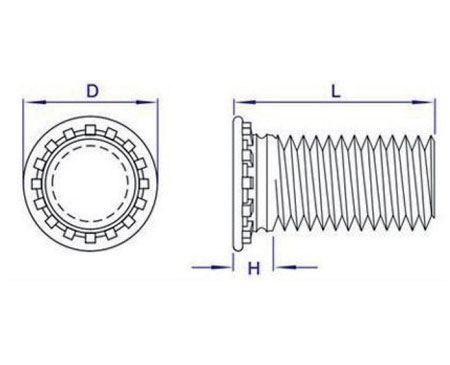

IPFH
Thread and pitch |
D +/- 0.4 |
H Max |
Min Sheet
|
Hole Size
|
Min Distance to edge of Sheet |
M3 x 0.5 |
4,6 |
2,1 |
1,0 |
3,0 |
5,6 |
M3.5 x 0.6 |
5,3 |
2,2 |
1,0 |
3,5 |
6,4 |
M4 x 0.7 |
5,9 |
2,4 |
1,0 |
4,0 |
7,2 |
M5 x 0.8 |
6,5 |
2,7 |
1,0 |
5,0 |
7,2 |
M6 x 1.0 |
8,2 |
3,0 |
1,6 |
6,0 |
7,9 |
M8 x 1.25 |
9,6 |
3,7 |
2,4 |
8,0 |
9,0 |
STANDARDS LENGTHS
Thread and pitch |
Length +/- 0.4 |
M3 |
6 – 8 – 10 – 12 – 15 – 18 – 20 – 25 – 30 |
M3.5 |
6 – 8 – 10 – 12 – 15 – 18 – 20 – 25 |
M4 |
6 – 8 – 10 – 12 – 15 – 18 – 20 – 25 – 30 |
M5 |
8 – 10 – 12 – 15 – 18 – 20 – 25 – 30 – 35 |
M6 |
10 – 12 – 15 – 18 – 20 – 25 – 30 – 35 |
M8 |
10 – 12 – 15 – 18 – 20 – 25 – 30 – 35 – 40 |
MATERIALS AND PLATING
– Carbon Steel
– 300 series Stainless Steel
– Zinc
– Plain
